FLEX-6500 Feature Highlights

Maximum Slice Receivers: Four (4)

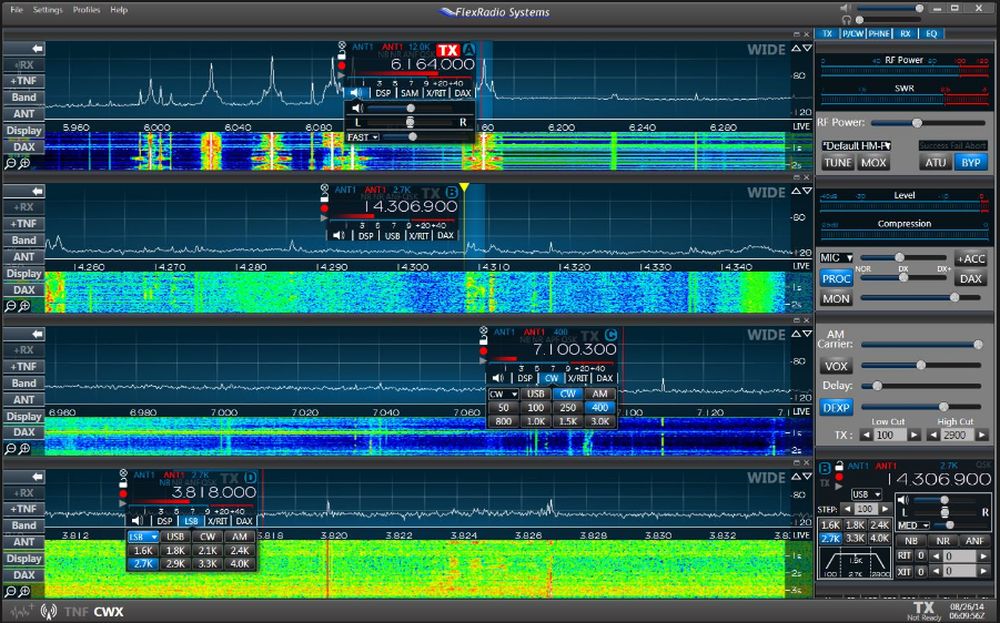

Maximum Panadapter Bandwidth: 14 MHz

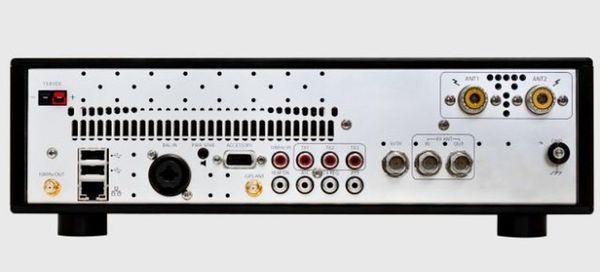

Antenna Connectors: SO-239x2; BNCx1; XVTR-BNCx1

Wideband Frequency Coverage: 30 kHz - 72 MHz

Transmit Frequency Coverage: 160-6m amateur bands, 100W nominal output

Transverter IF Frequency Coverage*: 100 kHz - 72 MHz

Digital Audio Exchange (DAX) Channels: Four (4)

DAX IQ Channels/Bandwidth per Channel (DAXIQ): Four (4) @ 24 kHz - 192 kHz

Preselectors: 160 - 2m (except 60m)

Microphone Connectors: Unbalanced 8-pin Foster, Balanced XLR/TRS

Antenna Tuner Unit (ATU): Integrated

Full Continuous Coverage Transmit: MARS/CAP Capable

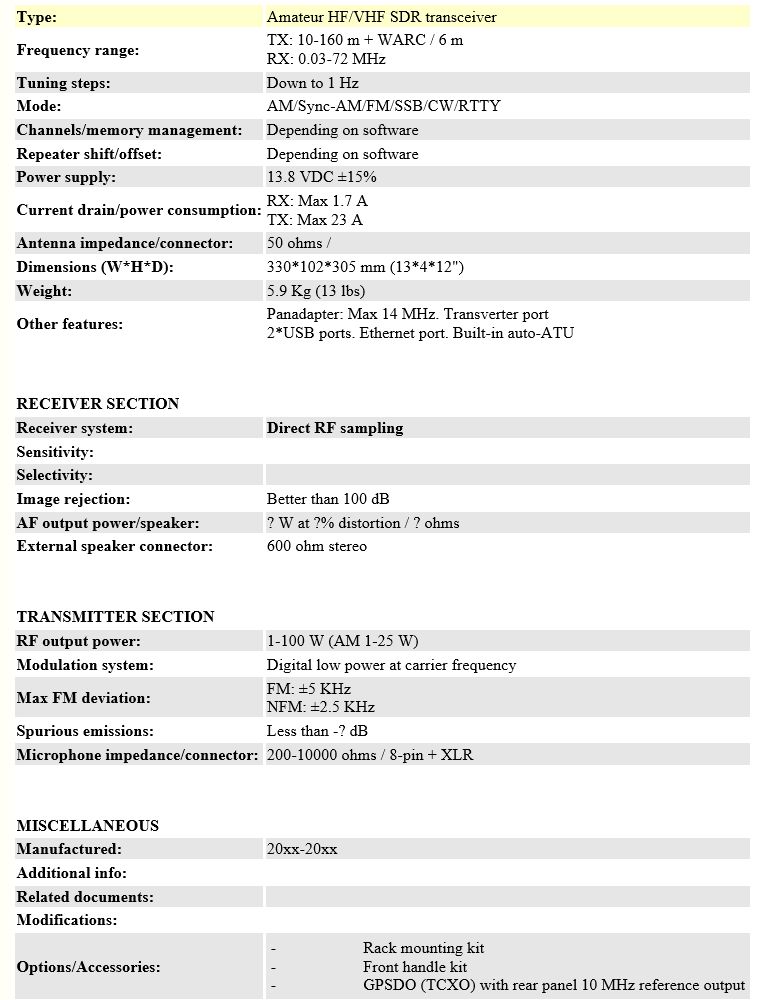

Technical data Flex-6500
